# How do I fit The Envoy Poncho Rail to my Maeving Motorcycle?

![](https://help.maeving.com/hs-fs/hubfs/undefined.png?width=400&height=291&name=undefined.png)

The following fitting instructions should apply to both the RM1 and RM1S:

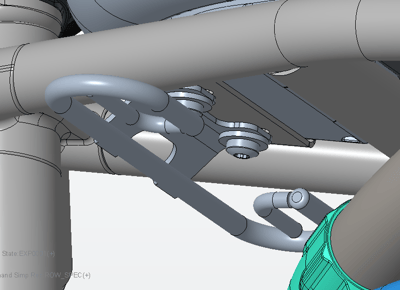

Remove the two rear fixings located beneath the storage tank. Using these same two fixings and their washers, mount the rail underneath the frame. Before refitting the fixings, apply Loctite 243 (blue) to the threads. Tighten each fixing to a torque of 4 Nm. Ensure that the rail is installed in the same orientation as shown in the reference image above.

For the RM2 model, this rail is not compatible with the Maeving RM2. RM2 riders wishing to carry a poncho should instead store it in the storage tank, pannier, or top box.
